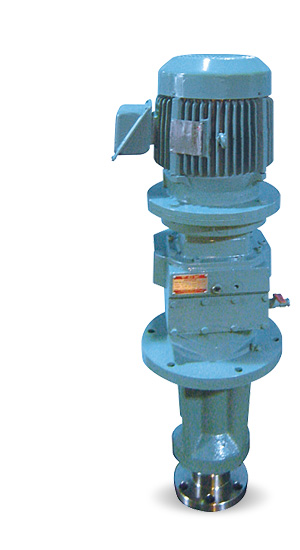

TWLA Type

TWLA-L Type

Dimension : TWLA-L Type

Model	A	B	C	D	E	F	G	N-ØZ
TWLA-L-036	Ø210	Ø240	108	12	80	Ø22~Ø28	339	4-Ø12
TWLA-L-046	Ø240	Ø270	124	14	100	Ø30~Ø35	436	4-Ø14
TWLA-L-066	Ø265	Ø300	130	15	120	Ø40~Ø45	437	6-Ø18
TWLA-L-086	Ø350	Ø400	285	17	300	Ø50~Ø65	602	6-Ø19
TWLA-L-106	Ø400	Ø450	340	19	350	Ø70~Ø75	717	6-Ø19
TWLA-L-126	Ø450	Ø500	385	22	400	Ø80~Ø85	863	8-Ø19
TWLA-L-146	Ø500	Ø550	440	25	400	Ø90~Ø100	1008	8-Ø19
TWLA-L-166	Ø550	Ø600	490	27	500	Ø105~Ø110	1058	12-Ø23
TWLA-L-186	Ø650	Ø700	570	30	500	Ø120~Ø130	1138	12-Ø23

• Motor : Stands for 4poles.
• Approx. C, G : Dimension depending on the Power are change.
• Mixing Shaft & Impeller assemble see the Standard torque table.
• Mixing Shaft & Impeller depending on the purpose of agitator are change.
• Changes and ecluding possible depending on the design.

TWLA-M Type

Dimension : TWLA-M Type

Model	A	B	C	D	E	F	G	H	N-ØZ
TWLA-M-035	Ø180	Ø240	Ø280	280	20	200	Ø30 -Ø35	500	4-Ø14
TWLA-M-045	Ø200	Ø280	Ø330	305	23	250	Ø40 -Ø45	610	4-Ø14
TWLA-M-065	Ø250	Ø350	Ø400	335	26	300	Ø50 -Ø65	670	4-Ø19
TWLA-M-085	Ø300	Ø400	Ø450	390	29	350	Ø70 -Ø75	810	6-Ø19
TWLA-M-105	Ø320	Ø420	Ø470	460	32	400	Ø80 -Ø85	980	6-Ø19
TWLA-M-125	Ø360	Ø500	Ø550	510	35	400	Ø90 -Ø100	1070	8-Ø23

• Motor : Stands for 4poles.
• Approx. D, H : Dimension depending on the Power are change.
• Mixing Shaft & Impeller assemble see the Standard torque table.
• Mixing Shaft & Impeller depending on the purpose of agitator are change.
• Changes and ecluding possible depending on the design.
