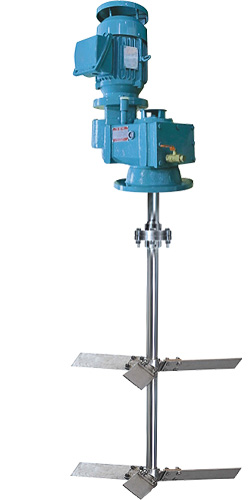

You may choose from HYDROFOIL & PADDLE IMPELLER according to the purpose of agitation and the HOLLOW SHAFT makes the unit lightweight and stable.
It is suitable for anoxic reactor, storage tank, and anaerobic tank that require high efficiency while stabilizing the speed of flow in the agitated vessel. Great for storage tanks, reactor tanks, and flocculation tanks of wastewater treatment plants.
HOLLOW SHAFT is tapered and TAPER ROLLER BEARING is used to bore the top of DRIVE SHAFT and fasten the unit with LOCK NUTS & WASHERS. This minimizes the vibration of shaft while the agitator is operated.
GEAR BOX and MOTORRK are separated and DRIVE SHAFT is tapered for more convenient repair and maintenance.

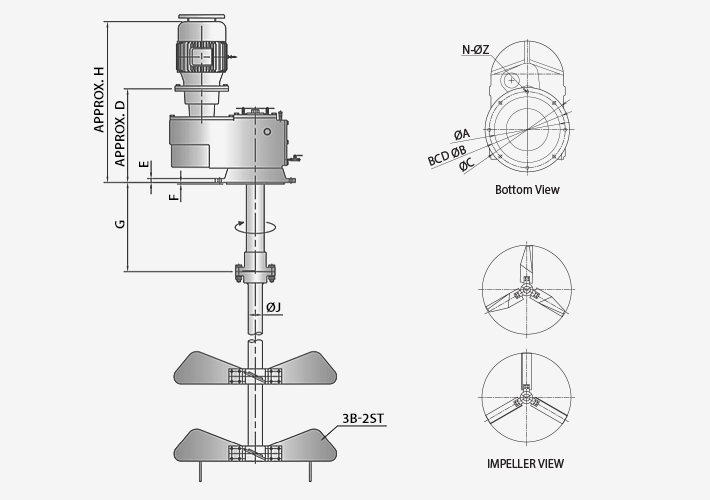

Dimension
Model
A
B
C
D
E
F
G
H
J
N-ØZ
TSFA-035/036
Ø140
Ø170
Ø200
278
10
3
120
560
Ø30-Ø35
4-Ø10
TSFA-055/056
Ø180
Ø215
Ø250
342
15
4
150
710
Ø40-Ø45
4-Ø14
TSFA-065/066
Ø230
Ø265
Ø300
380
16
4
200
730
Ø40 -Ø50
6-Ø15
TSFA-075/076
Ø250
Ø300
Ø350
432
16
4
200
865
Ø50 -Ø60
6-Ø15
TSFA-085/085
Ø300
Ø350
Ø400
512
18
5
300
980
Ø65 -Ø70
6-Ø19
TSFA-095/096
Ø350
Ø400
Ø450
560
22
5
300
1025
Ø75 -Ø85
8-Ø19
TSFA-105/106
Ø400
Ø450
Ø500
618
25
5
300
1165
Ø90 -Ø100
8-Ø19
TSFA-125/126
Ø500
Ø550
Ø600
458
25
5
600
1300
Ø105 -Ø110
12-Ø23
TSFA-155/156
Ø600
Ø650
Ø700
516
30
6
600
1500
Ø120 -Ø130
12-Ø23
TSFA-175/176
Ø680
Ø740
Ø800
840
40
6
600
1500
Ø140 -Ø160
12-Ø33
TSFA-195/196
Ø750
Ø825
Ø900
970
45
7
600
1500
Ø170 -Ø180
12-Ø33
TSFA-215/216
Ø850
Ø925
Ø1000
1030
50
8
600
1500
Ø190 -Ø210
12-Ø33
Motor : Stands for 4poles.
Approx. D, H : Dimension depending on the power are change.
Mixing Shaft & Impeller assemble see the Standard torque table.
Mixing Shaft & Impeller depending on the purpose of agitator are change.
Changes and ecluding possible depending on the design.
