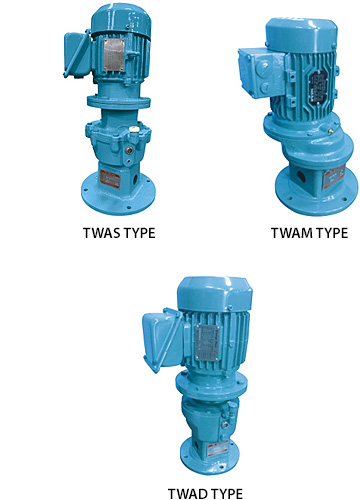

TWA S/M/D-Type

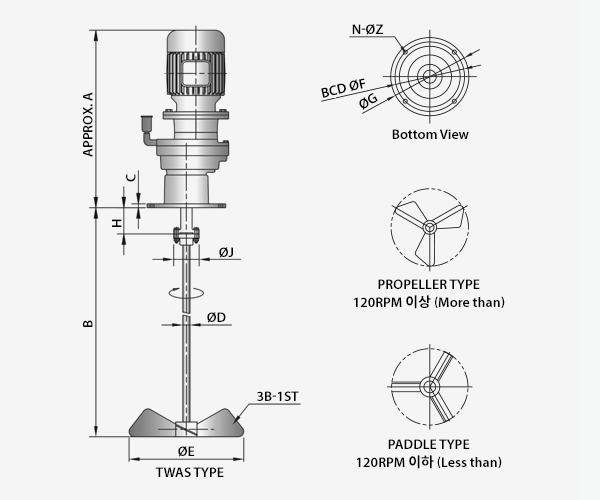

Dimension
| Model | HP | RPM | A | B* | C | D* | E* | F* | G* | H* | J* | N-ØZ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TWAS/M/D-005 | 1/2 | 60~360 | 520 | 1200 | 12 | Ø22 | Ø200 | Ø160 | Ø190 | 80 | Ø78 | 4-Ø12 |
| TWAS/M/D-01 | 1 | 60~360 | 520 | 1200 |
12 | Ø22 | Ø300 | Ø210 | Ø240 | 80 | Ø78 | 4-Ø12 |
| TWAS/M/D-02 | 2 | 60~360 | 650 | 1500 | 14 | Ø25 | Ø300 | Ø240 | Ø270 | 100 | Ø95 | 4-Ø14 |
| TWAS/M/D-03 | 3 | 60~360 | 690 | 2000 | 15 | Ø30 | Ø400 | Ø265 | Ø300 | 120 | Ø104 | 6-Ø18 |
| TWAS/M/D-05 | 5 | 60~360 | 700 | 2000 | 15 | Ø35 | Ø400 | Ø265 | Ø300 | 120 | Ø104 | 6-Ø18 |
- Motor : Stands for 4poles.
- Approx. A : Dimension depending on the power are change.
- Mixing Shaft & Impeller assemble see the Standard torque table.
- Mixing Shaft & Impeller depending on the purpose of agitator are change.
- * : Changes and ecluding possible depending on the design.
